  #46 (permalink)
Old 07-29-2012, 03:43 PM
CloudDiver's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2012
Location: San Diego, CA
Posts: 1,103
Not Ranked
And tacked up again...

I also forgot to take pics when I finished it but you get the idea. I filled the slices back in and smoothed it all out (another good 3 hours into the fender). I put the fender back on, wheel back on, and shifted the bung back about 3/8". Luckily the bolt was short enough to go back in from the inside with the wheel on so I was able to easily thread the bung onto it so I could accurately tack it into place.
Reply With Quote
Sponsored Links
  #47 (permalink)
Old 07-29-2012, 03:46 PM
CloudDiver's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2012
Location: San Diego, CA
Posts: 1,103
Not Ranked
Here is another 'secret weapon' part I am working on... Check out my make-shift band saw, a porta-band clamped into the bench vice! I take no credit for this idea but it is effective and free is much better than buying a band saw you have no room for anyway.

Reply With Quote
  #48 (permalink)
Old 07-29-2012, 03:55 PM
CloudDiver's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2012
Location: San Diego, CA
Posts: 1,103
Not Ranked
And now the Heavy Artillery...

Three things prompted this next acquisition...
1. Working on that above noted secret weapon part, it is aluminum which I don't have the equipment to weld.
2. While I was doing the 2nd round of slices on the fender I though it would be good to demonstrate how much better it would be to TIG the slices closed rather than MIG and do hours of clean up and smoothing...
3. I've been to a few places in Phoenix to see about getting the finish welding done on the bike when i am finished fab'ing all the parts and they always say the same thing... "Oh yeah, bring it by when you're ready but we probably won't get to it for 2 or 3 weeks..." (@ 65 to $80 per hour)

So... I found an old ad on CraigsList for this, figured it was sold by now but got lucky and talked hime down just a bit on the price. Brought it home today (minus a chunk of my wallet) and now I'm fairly happy I'll be doing ALL of my own work on this bike.


My roommate Adam, who you have seen helping me with the torch in previous pics, is a professional welder although he doesn't TIG at work very much. A good buddy of his is a welder at ALLIED and TIGs a lot, so we are grabbing some beers and a bunch of scrap cut offs and all getting together to test out the new rig and polish up our skills. I'll post pics of my best beads for some feedback and advice before I start any work on the CFL frame.
Reply With Quote
  #49 (permalink)
Old 07-29-2012, 04:06 PM
CloudDiver's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2012
Location: San Diego, CA
Posts: 1,103
Not Ranked
Requested by Nelster...

Here are some more detailed pics of the seat shock linkage from Bung King as requested by Nelster.




I know in this above pic it looks like the top cross bar, or the oil tank itself is not square... The top cross bar is square for sure, I tacked it with great care measuring twice and checking with a combination square. The oil tank is square too, but the spun sides actually tapper in slightly so the angle I'm standing over the bike and awkwardly holding my camera phone is making a visual trick that looks pretty whack.
Reply With Quote
  #50 (permalink)
Old 07-29-2012, 04:08 PM
CloudDiver's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2012
Location: San Diego, CA
Posts: 1,103
Not Ranked

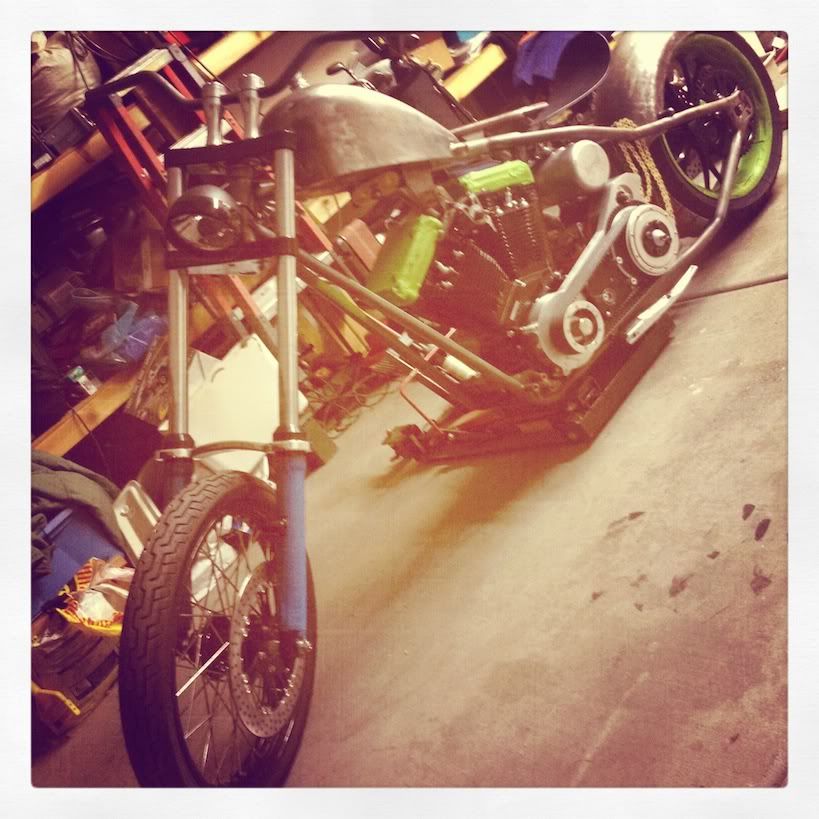

For shits and giggles, here's a pic I took with Instagram...

Reply With Quote
  #51 (permalink)
Old 07-29-2012, 04:17 PM
CloudDiver's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2012
Location: San Diego, CA
Posts: 1,103
Not Ranked
Hopefully I'll make more progress this week...
Getting my wire harness from Scooters (thanks John) in the mail.
I should also have the final MotoGadget electrical components to start the dry run of the electrical system plus drill the frame holes to route everything.
Waiting on the spacers for the front fender to get that mounted up.
Steve is re-working a couple parts for my mid-controls, we needed to shorten a few things because I'm running the Slimline belt drive. (plus he accidentally sent me a rear master cylinder for the foreword controls instead of the opposite facing unit for mid-controls, oops).
I should be getting my front wheel (hopefully the right size this time) and brakes from PM.
Also, the last bits I need for my various 'secret weapon' parts.

At this point I could actually pull the motor, primary and trans out of the frame since the driveline has been set up for several weeks... i'm just waiting on the mid-control components back from KD Engineering because I'd like to test fit them again before I break the roller down.

It should be a busy week! The good news is one of roommates moved out so there has been free space in the garage since then. Until we get someone else in the house I don't have to keep shifting the roller off to the side or take it back to my storage unit. Hopefully (knock on wood) I'll have all the fab done and the roller broken down before anyone new moves in and needs to use the parking spot!
Reply With Quote
