Ultima 200 rigid NZ

Well this is a change for me as I usually make my own frames but the price was so good I couldn't resist.
Frame is 8 up and 38 deg rake to suit 180-200. The frame is ok, welds are not spectacular but with some attention it should all work out.
I'll make mostly everything and started today to get under-way.

Cut the makings of the seat on the wire cutter , drilled it and rolled it to shape.
More work to do yet of course but happy with the outcome.
Next up I machined the neck cups out of stainless.

I will be ordering some wheel blanks soon and machine those to my own pattern.
Next week I'm going to make rear sprocket/sprotor.
Attached Thumbnails
Ultima 200 rigid NZ-001-large-.jpg   Ultima 200 rigid NZ-011-large-.jpg
Reply With Quote
Sponsored Links
  #2 (permalink)
Old 09-07-2012, 10:45 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Nov 2005
Location: Auckland, NZ
Posts: 166
Neutral
Seat picture
Attached Thumbnails
Ultima 200 rigid NZ-018-large-.jpg
Reply With Quote
  #3 (permalink)
Old 09-08-2012, 03:46 AM
pop 28's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Mar 2007
Location: fenwick, on
Bike Year, Make, Engine: shovel chopper
Posts: 1,618
Not Ranked
sure must be nice to have a cnc machine to do the work..... try doing it without the aid of a cnc machine...now thats craftmanship..
Reply With Quote
  #4 (permalink)
Old 09-10-2012, 02:02 AM
Club Chopper Member
Visit my Photo Gallery

Join Date: Aug 2007
Location: Who gives a fuck, Me
Posts: 350
Not Ranked
like the seat, if this is jedi that built the shovelhead full of handmade parts, his work is amazing
__________________
''From start to finish its all chopper''
Reply With Quote
  #5 (permalink)
Old 09-12-2012, 08:56 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Nov 2005
Location: Auckland, NZ
Posts: 166
Not Ranked
Got a start on the sprockster, grabbed a piece of steel, machined a blank, gear cut-hobbed it and now I just have to drill a bunch of holes and also mill it.





Reply With Quote
  #6 (permalink)
Old 09-14-2012, 09:58 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Nov 2005
Location: Auckland, NZ
Posts: 166
Not Ranked

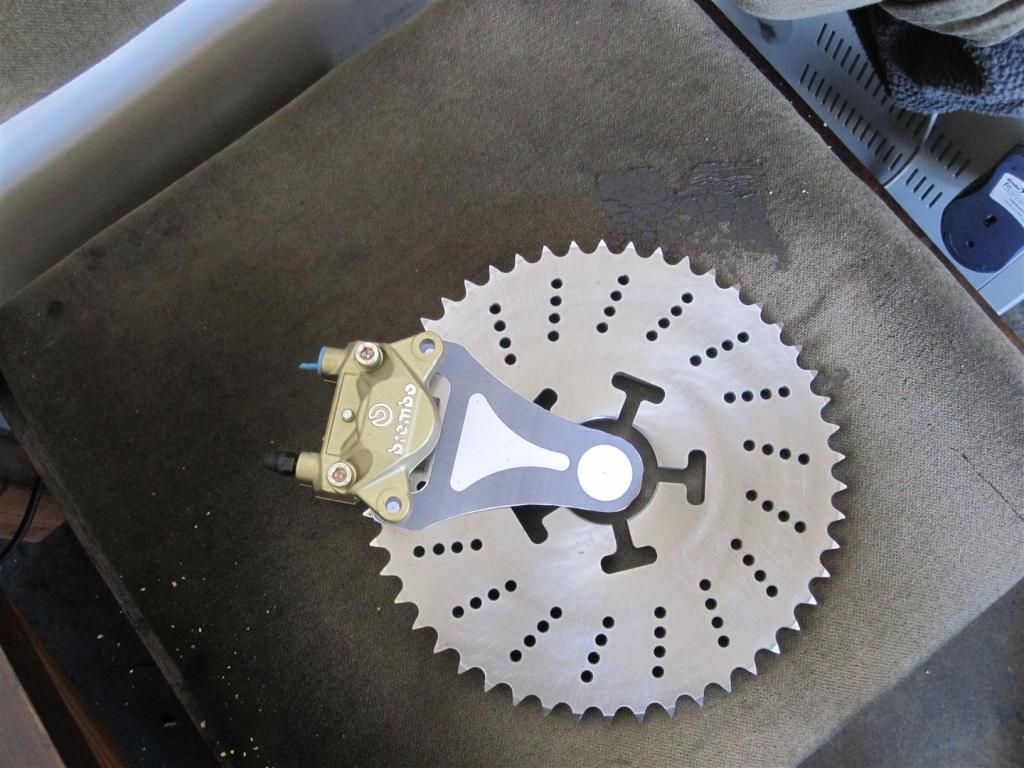

Milled and drilled the sprockster, haven't drilled the mount holes yet but I'll wait until I get the caliper and machine the wheel hub etc, got a Ducati rear from Ebay which I think will work and then have to make the caliper carrier. I'll probably Nitride the sprockster and maybe Zinc plate it, not sure yet.

Next up is to attempt to make a rear fender.
Attached Thumbnails
Ultima 200 rigid NZ-picture-011-medium-.jpg   Ultima 200 rigid NZ-picture-018-medium-.jpg

Last edited by jedi; 09-14-2012 at 10:01 PM..
Reply With Quote
  #7 (permalink)
Old 09-22-2012, 07:11 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Nov 2005
Location: Auckland, NZ
Posts: 166
Not Ranked
Got the caliper in which I think will work ok, I''l make a spacer to widen it to allow it to straddle the rotor/sprocket which is straight forward enough.

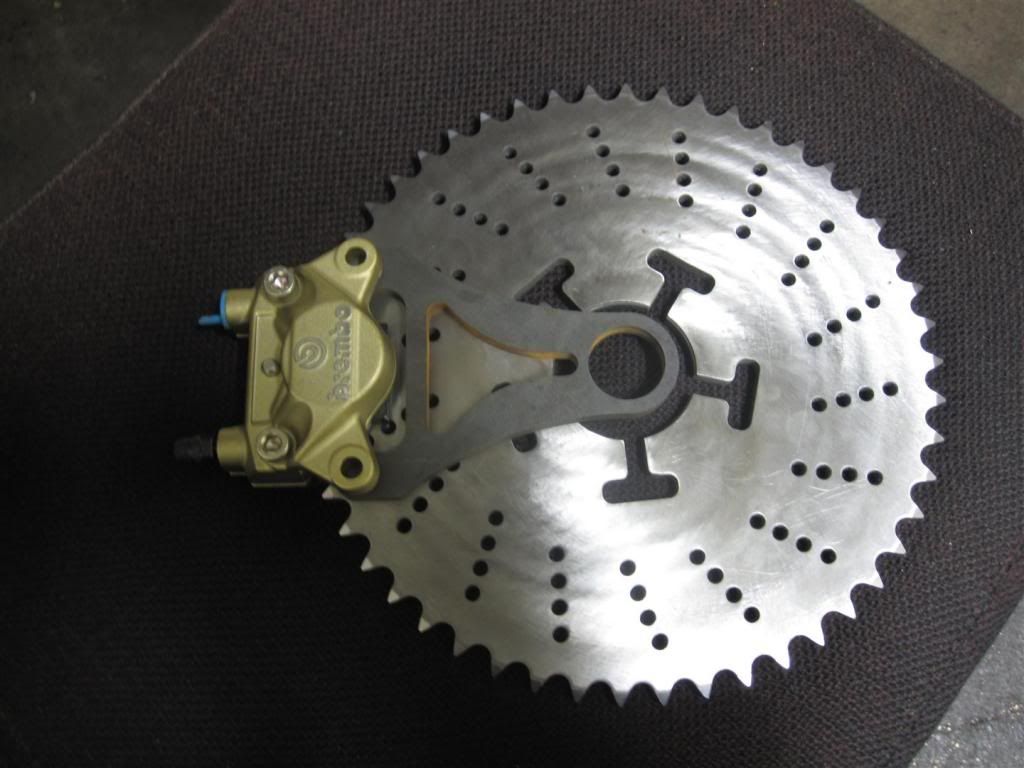

Drew the caliper carrier and printed it to scale and dummied it up to make sure it won't interfere with the caliper edges etc and all seems ok so far.

Reply With Quote
  #8 (permalink)
Old 11-03-2012, 01:01 AM
Club Chopper Member
Visit my Photo Gallery

Join Date: Nov 2005
Location: Auckland, NZ
Posts: 166
Not Ranked
Been busy with work etc but now back into it again at last.
Cut the calliper arm and just need to drill and tap to mount it.

Reply With Quote
  #9 (permalink)
Old 11-10-2012, 12:40 AM
Club Chopper Member
Visit my Photo Gallery

Join Date: Nov 2005
Location: Auckland, NZ
Posts: 166
Not Ranked

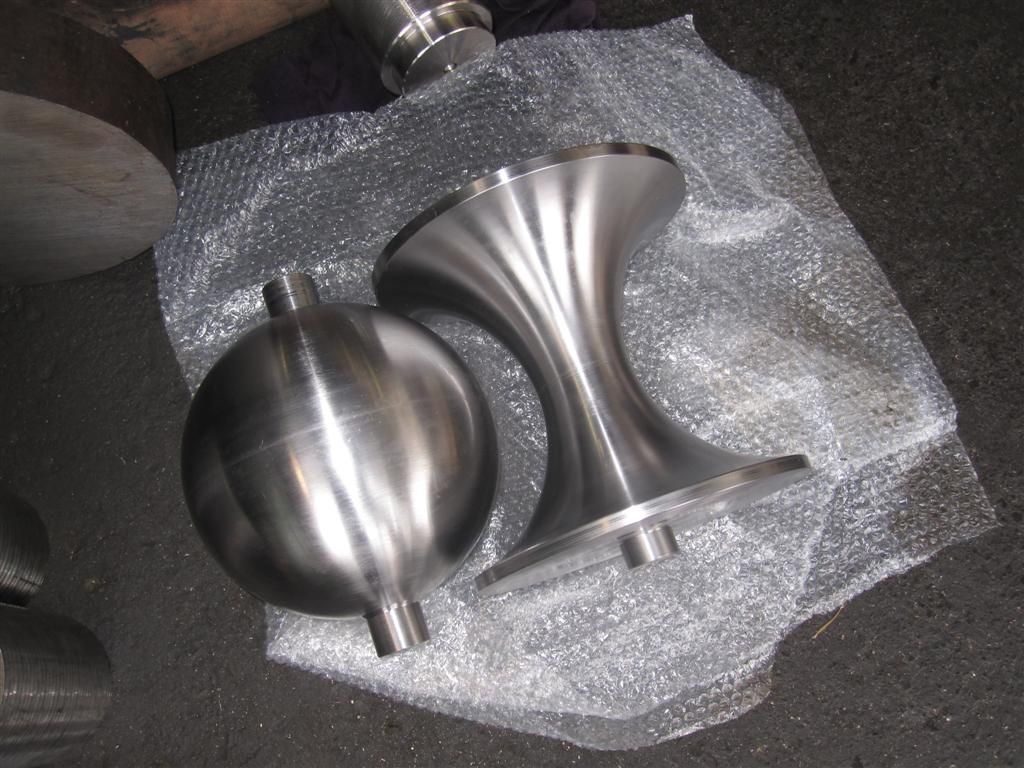

Going to attempt to make my fenders with some form rollers, so today I machined one part being the male and hopefully I can finish the female concave roller tomorrow. The picture probably doesn't give any size reference but it is a massive chunk of steel.
