330 Monoshock Build

I finally got some of the pictures together from the build I'm doing right now. I decided to tear down my 2004 Chopper, use what I can, and sell off the rest. Here's some pics of my progress:

Redneck Monoshock Frame and fender blank:



My Chopper, a parting shot...







330 rear wheel/tire finally arrives, after waiting 5 months!



Doing some mods to the frame



__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
Sponsored Links
  #2 (permalink)
Old 09-27-2010, 12:58 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked
Starting to look like a bike:

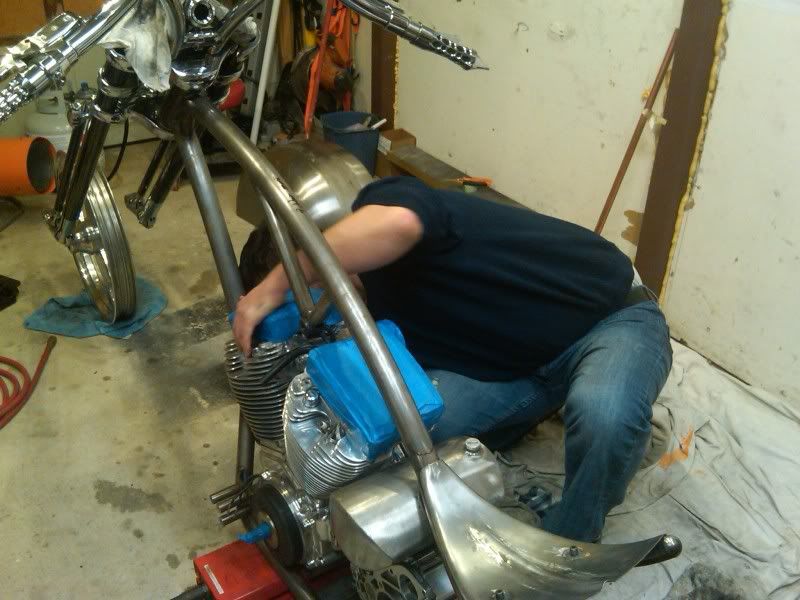

Oil tank is retarded close to the engine, had to do some cutting here







Much better...

__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #3 (permalink)
Old 09-27-2010, 12:59 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked
Gas Cap

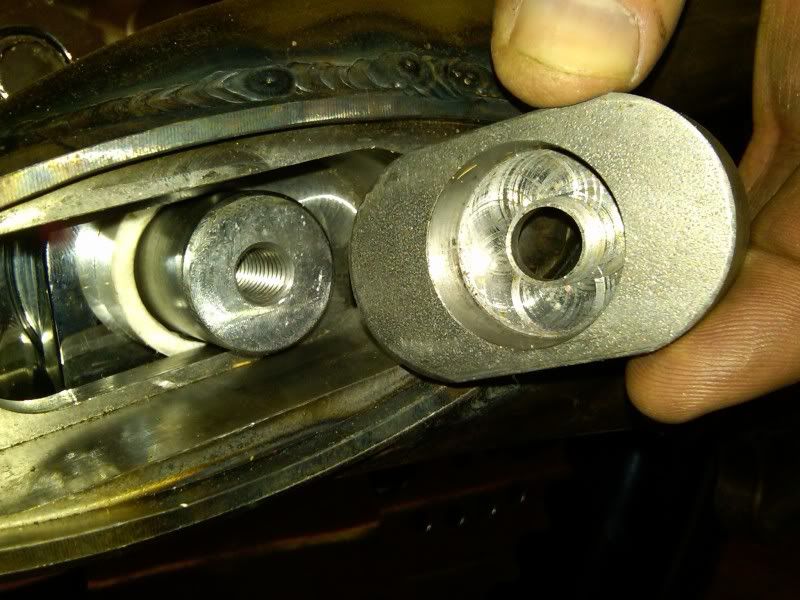

I'm not thrilled with a 3/8" bolt holding my axle in, so I'm reaming it out to 1/2"



__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #4 (permalink)
Old 09-27-2010, 01:04 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked

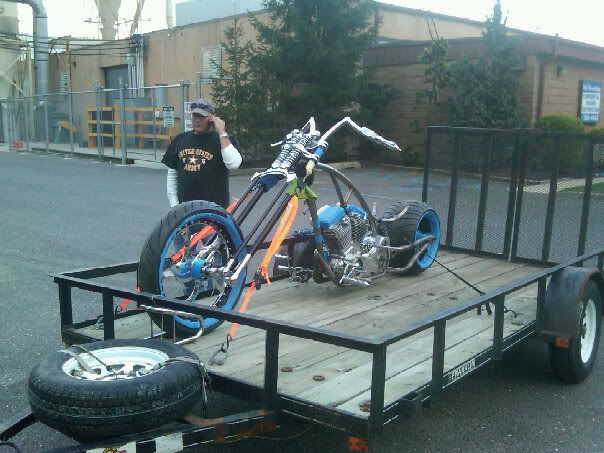

I brought the bike over to Howards Killer Customs of Pine Hill, NJ to fabricate me a custom gas tank. 4 months and $900 later all I had were a bunch of lame excuses so I picked the bike up and went to Ron at Vision Designs for a tank. Ron has been great and very patient with my slacking ass on coming up with a design. Here's the roller on the trailer, coming back home.

__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
Sponsored Links
  #5 (permalink)
Old 09-27-2010, 01:05 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked
It's been a while since I updated this thread. Didn't work on the Redneck much this summer, I was busy riding and rebuilding my Yamaha, but I finally got back on it last night. A few things I did this summer that I never updated:

I rough cut the rear fender just for an idea of how I'm gonna mount it.

First I made a circle template and made progressively larger cuts to get in the ballpark.







Now I lay it on the swingarm with a spacer to set the distance from the tire, and determine where I need to weld bungs or tabs to mount it. I will probably end up cutting the rear into a reverse half-moon shape, but I haven't decided yet.



I had an issue with the neck being an odd size. I still haven't gotten to the bottom of this, but basically the stem was bottoming out before it was putting any preload on the bearings. I made a larger dust cap to take up the slack. This one is aluminum, but I may make the finished product out of harder stainless so there is no issue with galling between the spacer and the top tree...







__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #6 (permalink)
Old 09-27-2010, 01:06 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked
As you saw earlier the oil tank needed to be moved. I ended up cutting the whole mount off the frame and I'll drop it lower, pending my exhaust choice so I can check for clearance. I cut the tank tunnel deeper so I could slide it rearward a little more for clearance around the heads.









For my gas tank, I'm still lost in space. Last night I tried making a wire frame to help come up with a design. I made some progress but nothing I really liked. My backbone is huge, 36" from the neck to where my nuts sit, so it's hard to get a tank on there that doesn't look like you strapped a beached whale to the bike. I saw this bike this morning, and I'm diggin the tank, what do you guys think??



__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #7 (permalink)
Old 09-27-2010, 01:23 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked

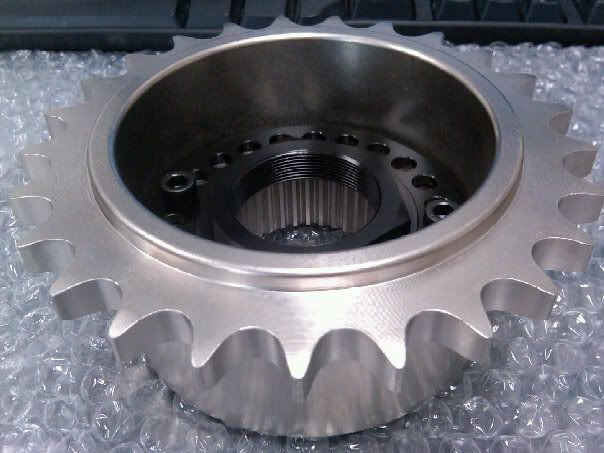

Custom made front drive sprocket from 3 Guyz with a locking plate and the larger spline area. With the shit economy and end of the chopper craze it's damn hard to find off the shelf parts for fat tire bikes...

__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #8 (permalink)
Old 11-26-2010, 09:09 AM
Junior Member
Visit my Photo Gallery

Join Date: Oct 2010
Location: Fort Huachuca, az
Posts: 14
Not Ranked
crazy build man, love it.
Reply With Quote
  #9 (permalink)
Old 11-26-2010, 09:50 AM
pupuslinger's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Feb 2007
Location: Union City, ca
Bike Year, Make, Engine: 07-no,08-no,09-no, maybe 10 cfl
Posts: 758
Send a message via MSN to pupuslinger
Not Ranked
Those wheels are the shit!
Reply With Quote
  #10 (permalink)
Old 01-12-2011, 11:09 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked

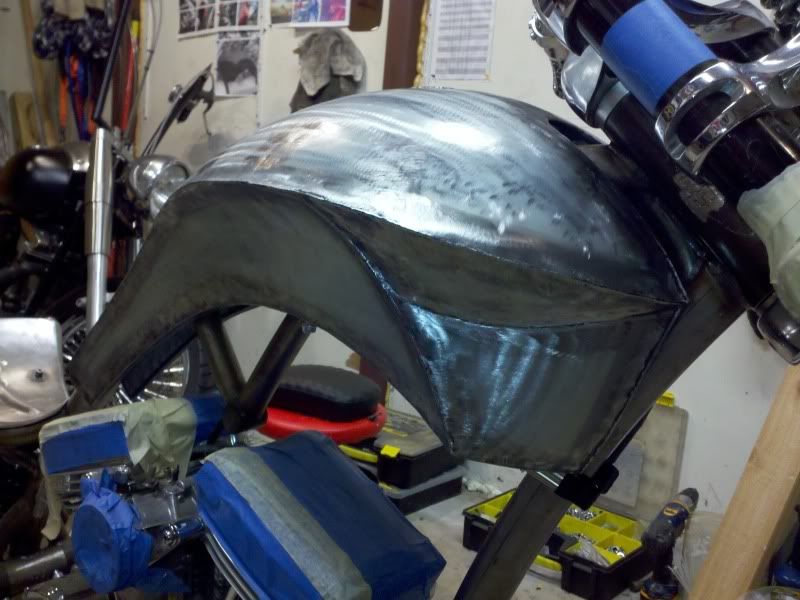

Got my gas tank back from Ron Pogue at Vision Design Studios ( http://www.vision-design-studios.com/ ). I could not be happier with it, Ron did an excellent job, and the one off tank came back looking exactly like the template I sent him.

I started out with a wireframe template as Ron suggested. I kept it simple and used baling wire and hot glue. After a few iterations, here's what I came up with:





Once complete I made a template of the backbone and engine heads and boxed it all up to goto Ron.



Unfortunately, on the other end, this is what Ron took out of the box:



Somehow, the dude got that thing back together based on some pics and videos I sent him, and managed to make me a tank that was pretty much exactly what I envisioned.

I wasn't sure how I was going to do the rear of the tank as far as blending it into the narrow frame, so I had him make it short. I've since decided that I'll cut up the back a bit, slim it down and extend it to flow into the seat.





The lower forward panels will be smoothed out with bondo to a concave shape.

__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #11 (permalink)
Old 01-12-2011, 11:09 PM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked
Next was to align the rear and get the sprockets lined up. I was having trouble finding a large enough offset front sprocket, so I had 3guyz custom make one for me. Very nice and reasonably priced. Using a piece of angle stock and a laser I got the sprockets aligned, then cut some new spacers. The tire is now centered on the backbone. I have no idea what I'm going to do for a transmission pushrod, it's way out there. Another part I'll have to make.





I've also got an issue with the sprotor caliper. At 7/8" it's too far from the mounting tab on the frame. I may weld a spacer to the frame tab, then weld another support back to the swingarm, making a triangle. Not too clean, but nobody can see under there anyway. Any suggestions here are appreciated!

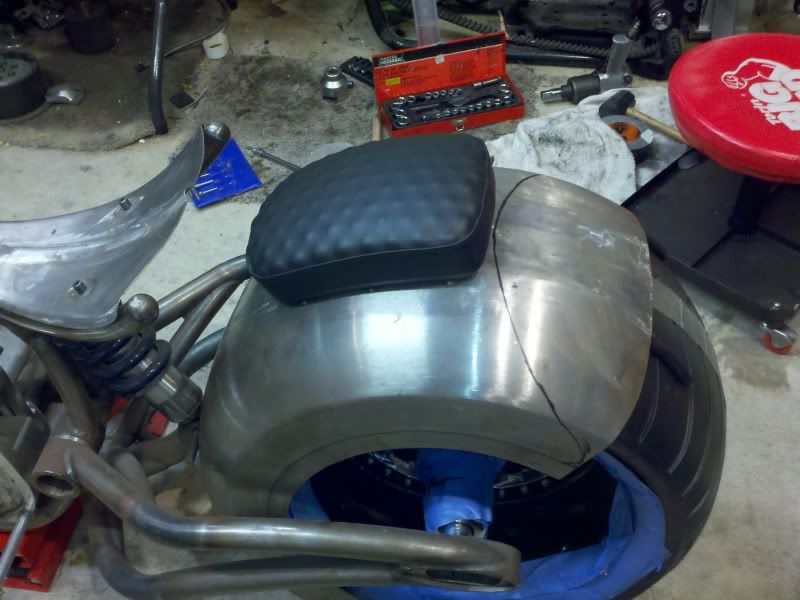

Now to start mounting the rear fender, something I've been dreading. I started with a blank and made some initial cuts. The issue I have is that the fender is frigging huge, wide, and flat on top. That makes it really hard to get a pleasing shape. I don't want to do a point, everyone does the point. I like the reverse cut, but can't seem to get it to look right. Lots of work to do here.







And where is the bitch going to sit? Not much space back here.

__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #12 (permalink)
Old 01-12-2011, 11:50 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Jan 2007
Location: a corn field, IN
Bike Year, Make, Engine: A fuckin tractor
Posts: 1,082
Not Ranked
looks good man. Ron did a great job on your tank! you have gotta ditch those bars though....
Reply With Quote
  #13 (permalink)
Old 01-13-2011, 12:03 AM
jsp jsp is offline
Club Chopper Member
Visit my Photo Gallery

Join Date: Aug 2008
Location: san jose, ca
Posts: 1,493
Not Ranked
Damn lookin good!
Reply With Quote
  #14 (permalink)
Old 01-13-2011, 12:08 AM
moejoe03's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Oct 2003
Posts: 974
Not Ranked
Quote:
Originally Posted by cfl4rat View Post
looks good man. Ron did a great job on your tank! you have gotta ditch those bars though....
Seriously? The bars are my favorite part of the bike. Everyone who sees it creams on them, you're honestly the first person in 2 years to knock them. What don't you like?
__________________
Moe

330 Monoshock Build
00 Roadstar Project Bike

Cherry Hill, NJ
Fountain Hills, AZ
Reply With Quote
  #15 (permalink)
Old 01-13-2011, 07:24 AM
strprswpr's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Jul 2004
Location: Bronx, New York,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, NY
Bike Year, Make, Engine: 2008 NYMC DESIGN Knucklehead
Posts: 805
Not Ranked
This is looking great Bud. Great work
