DIY 5'x6'x5' Curing Oven

Hey Guys

I've been manufacturing industrial batch ovens for the past 8 years. We recently closed our operation down to move to a different line of work (sleeping til 11 am and riding the scooter til time for bed)

I wanted to offer a complete set of build plans on one of our small models for free of course.

The oven is 5' wide 6' tall 6' deep can be built for either gas or electric heat. I will be posting a parts and vendor list. I will also offer cad files to get the parts cut. I posted some pics to show the oven. It will take me a couple weeks to get over thing together. This is a perfect oven for motorcycle, hotrod and other small parts.









__________________
Reply With Quote
Sponsored Links
  #2 (permalink)
Old 04-14-2009, 05:32 PM
Barefoot Choppa's Avatar
Douchebaggery
Visit my Photo Gallery

Join Date: Jan 2006
Location: Barefoot Country, NJ
Bike Year, Make, Engine: 05 Barefoot Choppa
Posts: 29,062
Not Ranked
Pretty cool Todd!!! I'm sure it's quite a few more bucks then the trailer though. What are you using for heating elements, thermocouple, controls?
__________________
...Handle every stressfull situation like a dog...if you can't eat it or hump it...piss on it and walk away...
"if i got all bent out of shape over folks i don't respect... i might wake up with your life"
Reply With Quote
  #3 (permalink)
Old 04-14-2009, 05:42 PM
todds_rods's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2009
Location: powell, tn
Posts: 314
Neutral
I use SS finned strip heaters for electric and a Heatwise Su-5 burner for gas. Thermal couples are type J. I will post how to build the control panel. I have all this shit cluttering my computer.
__________________
Reply With Quote
  #4 (permalink)
Old 04-14-2009, 05:44 PM
Mr Scary's Avatar
Super Moderator
Visit my Photo Gallery
Lifetime Contributor
Join Date: Aug 2005
Location: Behind the curtain, OZ
Bike Year, Make, Engine: Some kind of big ass V2, Alcohaulin' Ass
Posts: 35,575
Send a message via ICQ to Mr Scary
Not Ranked
Todd...great contributions to the site!!!!!!!!!!!
Reply With Quote
  #5 (permalink)
Old 04-14-2009, 05:47 PM
todds_rods's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2009
Location: powell, tn
Posts: 314
Not Ranked
Quote:
Originally Posted by Mr Scary View Post
Todd...great contributions to the site!!!!!!!!!!!
Thanks man.......I have a ton of free shit coming.
__________________
Reply With Quote
  #6 (permalink)
Old 04-14-2009, 06:08 PM
todds_rods's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2009
Location: powell, tn
Posts: 314
Not Ranked
Pics of door assembly.







__________________
Reply With Quote
  #7 (permalink)
Old 04-14-2009, 06:19 PM
occparts's Avatar
CC Member/Contributor
Visit my Photo Gallery

Join Date: Jan 2006
Location: Jackson, Mi
Bike Year, Make, Engine: Which one?
Posts: 1,128
Not Ranked
Quote:
Originally Posted by todds_rods View Post
Hey Guys

I've been manufacturing industrial batch ovens for the past 8 years. We recently closed our operation down to move to a different line of work (sleeping til 11 am and riding the scooter til time for bed)

I wanted to offer a complete set of build plans on one of our small models for free of course.

The oven is 5' wide 6' tall 6' deep can be built for either gas or electric heat. I will be posting a parts and vendor list. I will also offer cad files to get the parts cut. I posted some pics to show the oven. It will take me a couple weeks to get over thing together. This is a perfect oven for motorcycle, hotrod and other small parts.










Wow,I was just talking today how I would like to build an oven to powdercoat and here you post this. Thank you!
__________________

JB Customs
2422 W. Michigan Ave
Jackson,Michigan 49202
517-787-8730
jbcustoms.com
Motorcycles are one of life's many pleasures!
Reply With Quote
  #8 (permalink)
Old 04-14-2009, 06:49 PM
todds_rods's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2009
Location: powell, tn
Posts: 314
Not Ranked

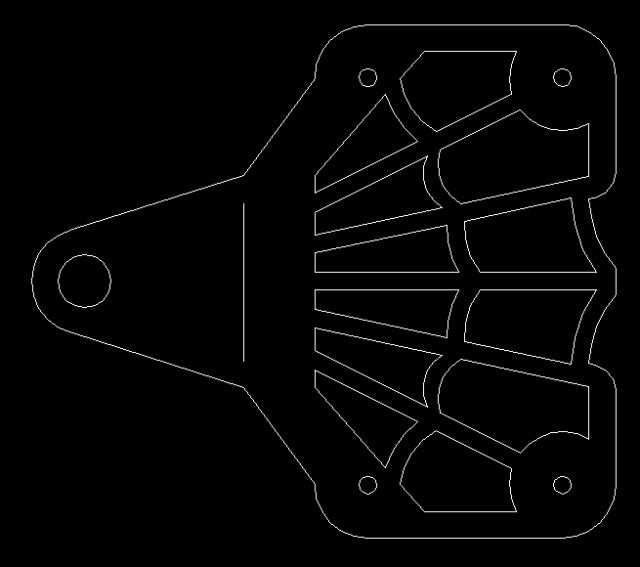

Over the years I've drawn and collected a shit load of cad drawings like the tag bracket below. I will try to start a thread on just cad files.

__________________
Reply With Quote
  #9 (permalink)
Old 04-15-2009, 01:40 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Dec 2008
Location: Chicago, IL
Posts: 154
Not Ranked
awesome links man! thanks!
__________________

www.thepowderpro.com
custom powder coating and bike builds
Joe
Elgin, IL
Reply With Quote
  #10 (permalink)
Old 04-16-2009, 03:52 AM
Rude-Dog's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Apr 2007
Location: Frozen Tundra, WI
Bike Year, Make, Engine: 1998 FXDS / 1991 XL 1200 Springer
Posts: 144
Not Ranked
I have no intention of building an oven but that tag bracket looks kick-ass! I may have another project coming up soon! Maybe it'll be easier for you if you just send me your harddrive.

Thanks Todd.
__________________


Welders do it in all positions! !

2 big jugs are better than 4 little ones! !
Reply With Quote
  #11 (permalink)
Old 09-07-2009, 10:12 PM
Club Chopper Member
Visit my Photo Gallery

Join Date: Sep 2009
Location: Adelaide Australia, SA
Bike Year, Make, Engine: Kawasaki powered car
Posts: 1
Not Ranked
Hey Guys I would love to build an oven Down Under in Australia. Are there any more detailed plans or supply of components available?
Reply With Quote
  #12 (permalink)
Old 11-05-2010, 06:20 PM
Junior Member
Visit my Photo Gallery

Join Date: Nov 2010
Location: girard, oh
Posts: 2
Not Ranked
did you ever get them cad files done
Reply With Quote
Sponsored Links
  #13 (permalink)
Old 01-27-2011, 06:02 AM
tin tin is offline
Junior Member
Visit my Photo Gallery

Join Date: Jan 2011
Location: hamrun, ma
Posts: 1
Not Ranked
Hi this oven is what really i was searching for.really professional!!!!!!!
can someone send me more pics and info about how this was made.
I'm really interested of doing a gas oven cause in my country electricity
is really expensive.tnx alot and very nice jobs.
Reply With Quote
  #14 (permalink)
Old 01-27-2011, 08:36 AM
stang_me1990's Avatar
Club Chopper Member
Visit my Photo Gallery

Join Date: Sep 2007
Location: Boscobel, WI
Bike Year, Make, Engine: 2012 Custom Trike, 89" S&S, 5spd with re
Posts: 234
Not Ranked
nice looking oven....mine is 3w x 4d x 6h and it takes up a ton of room, pretty much need a dedicated building for powder coating
__________________
"Light travels faster than the speed of sound, which is why some people appear bright until they speak"
Reply With Quote
  #15 (permalink)
Old 10-16-2011, 06:34 AM
Junior Member
Visit my Photo Gallery

Join Date: Oct 2011
Location: Johannesburg, SA
Posts: 1
Not Ranked
Thumbs up Industrial batch oven

Hi. I read your post on possible " FREE " plans on your smaller batch oven. It's rather the top notch oven I saw on your page that got me. I'll be starting on manufacturing of lever and pull handles for doors in Jan 2012 that would requires powder coating. I'm still gathering all relevant machines and equipment. I have just purchased a Prima Wagner EPG 2008 for R12750 (+/- 1800 USD).I'm extremely excited to be able to have my own complete powder coating plant. Please let us know as soon as possible when the plans will be ready free or not. Await your reply- Johannesburg SA.
Reply With Quote
